Introducing the CAROBBEN Sinuate Series CAT6A+ up to 680MHz Network Cable – the pinnacle of performance and reliability for all your networking needs. Designed with advanced technology and superior materials, this cable is perfect for both professional and home network setups.
High-Speed Performance: With a frequency of up to 680MHz, this CAT6A+ cable ensures exceptional data transfer rates, making it ideal for high-bandwidth applications like streaming, gaming, and data centers.

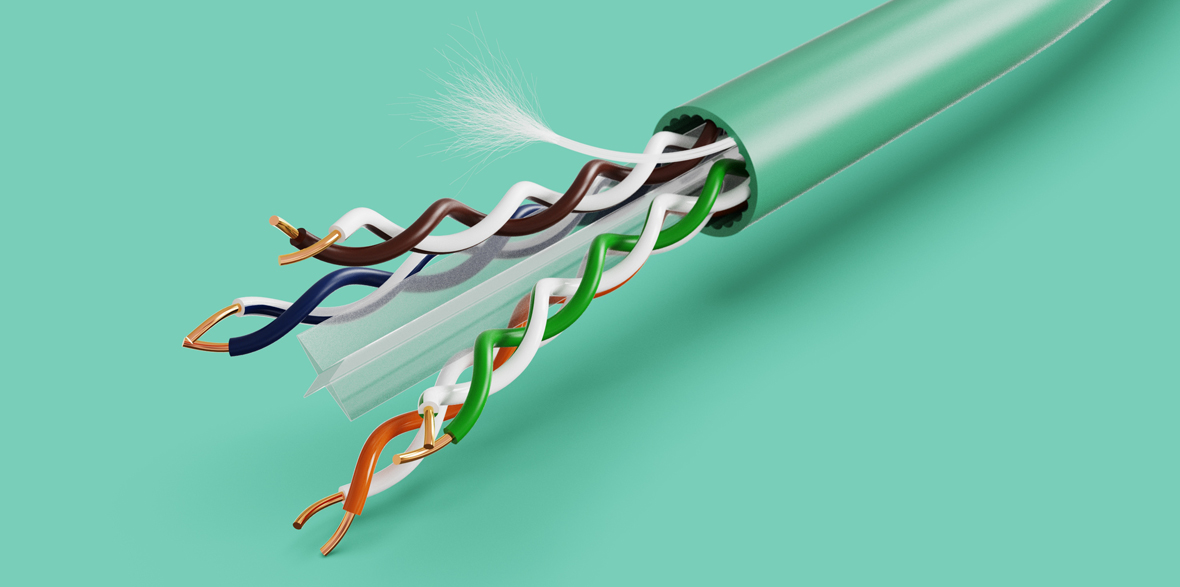

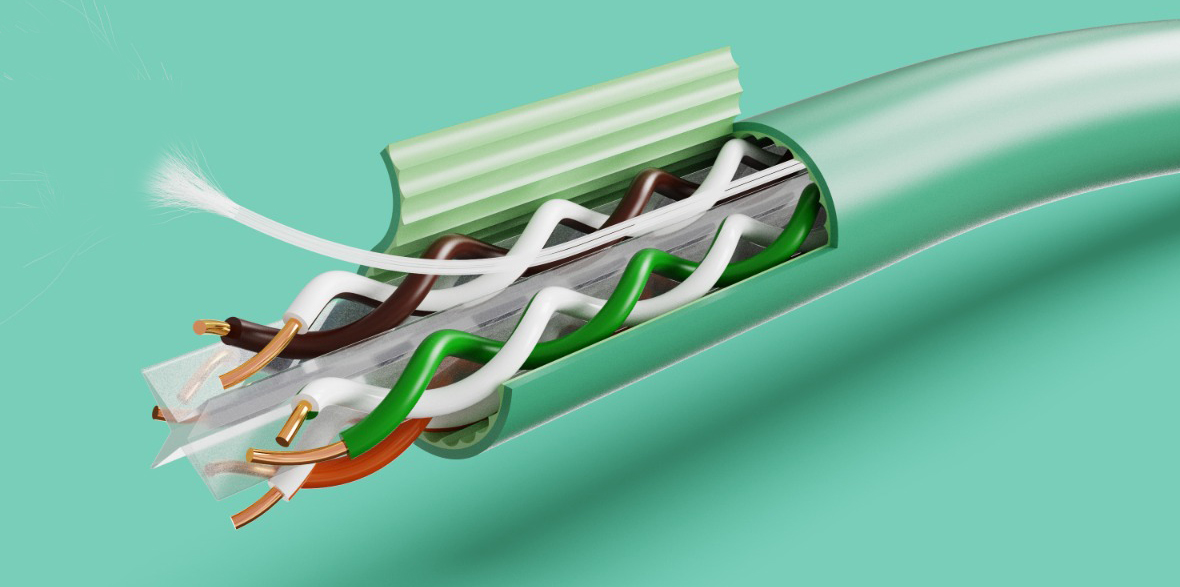

Innovative Sinuate Design: Inside the LSZH (Low Smoke Zero Halogen) jacket, the Sinuate structure provides extra stability and reduces the risk of crosstalk, ensuring consistent and reliable performance. This unique design helps maintain the cable’s shape and integrity even in demanding environments.
Durable and Safe: The LSZH jacket not only offers flexibility and durability but also emits minimal smoke and no halogen in the event of a fire, making it a safer choice for enclosed spaces.
Versatile Connectivity: This cable is perfect for a variety of applications including Ethernet connections, internet routing, and more. It supports up to 10Gbps of data transmission, ensuring you stay connected at the highest speeds.
Brand Assurance: As part of the CAROBBEN brand, the Sinuate Series CAT6A+ cable is built to the highest standards of quality and performance, ensuring you get the best networking experience.
| Category 6A+ U/UTP Solid Lan Cable | ||||||||
|---|---|---|---|---|---|---|---|---|
| Frequency [MHZ] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. PSACRF [dB] | Min. Return Loss [dB] | Min. TCL [dB] | Min. PSANEXT [dB] | Min. PSAACRF [dB] |
| 1 | 2.1 db/100m | 75.3 | 73.2 | 79.8 | 20.0 | 40.0 | 75.0 | 77.0 |
| 4 | 3.8 db/100m | 66.3 | 62.5 | 67.8 | 23.0 | 40.0 | 75.0 | 76.2 |
| 8 | 5.3 db/100m | 61.8 | 56.5 | 61.7 | 24.5 | 40.0 | 75.0 | 70.1 |
| 10 | 5.9 db/100m | 60.3 | 54.4 | 59.8 | 25.0 | 40.0 | 75.0 | 68.2 |
| 16 | 7.4 db/100m | 57.2 | 49.8 | 55.7 | 25.0 | 38.0 | 75.0 | 64.1 |
| 20 | 8.3 db/100m | 55.8 | 47.4 | 53.8 | 25.0 | 37.0 | 75.0 | 62.2 |
| 25 | 9.3 db/100m | 54.3 | 45.0 | 51.8 | 24.3 | 36.0 | 75.0 | 60.2 |
| 31.25 | 10.4 db/100m | 52.9 | 42.5 | 49.9 | 23.6 | 35.1 | 75.0 | 58.3 |
| 62.5 | 14.8 db/100m | 48.4 | 33.6 | 43.9 | 21.5 | 32.0 | 73.6 | 52.3 |
| 100 | 18.9 db/100m | 45.3 | 26.4 | 39.8 | 20.1 | 30.0 | 70.5 | 48.2 |
| 200 | 27.0 db/100m | 40.8 | 13.8 | 33.8 | 18.9 | 27.0 | 66.0 | 42.2 |
| 250 | 30.4 db/100m | 39.3 | 9.0 | 31.8 | 17.3 | 26.0 | 64.5 | 40.2 |
| 300 | 33.5 db/100m | 38.1 | 4.6 | 30.3 | 16.8 | 25.2 | 63.3 | 38.7 |
| 350 | 36.3 db/100m | 37.1 | 0.8 | 28.9 | 16.3 | 24.6 | 62.3 | 37.3 |
| 400 | 39.0 db/100m | 36.3 | 27.8 | 15.9 | 24.0 | 61.5 | 36.2 | |
| 450 | 41.5 db/100m | 35.5 | 26.7 | 15.5 | 23.5 | 60.7 | 35.1 | |
| 500 | 43.9 db/100m | 34.8 | 25.8 | 15.2 | 23.0 | 60.0 | 34.2 | |
| 550 | 46.2 db/100m | 33.2 | 25.0 | 14.9 | 59.4 | 33.4 | ||
| 600 | 48.4 db/100m | 32.6 | 24.2 | 14.7 | 58.8 | 32.6 | ||
| 625 | 49.5 db/100m | 32.4 | 23.9 | 14.5 | 58.6 | 32.3 | ||
| 750 | 54.7 db/100m | 32.2 | 22.3 | 14.0 | 57.4 | 30.7 | ||
| 860 | 58.9 db/100m | 31.3 | 21.1 | 13.6 | 56.5 | 29.5 | ||
| Application | |
|---|---|
| Conductor/Pair Count꞉ | CAT6A+ , 4 Pair |
| Conductor Size ꞉ | 23 AWG (American Wire Gauge) |
| Conductor Type ꞉ | Solid |
| Fire Rating ꞉ | Low
Smoke
Zero
Halogen
(LSZH) |
| Jacket Type ꞉ | LSZH Aqua Color |
| Shielded ꞉ | U/UTP Unscreened Twisted Pair |
| Type ꞉ | Data |
| Packaging ꞉ | Pull Box |
| Length ꞉ | 305m |
| Support ꞉ | up to 680MHz |
| Pair Number 1 – 2 ꞉ | White‑Orange Strip and Orange |
| Pair Number 3 – 4 ꞉ | White‑Green Strip and Green |
| Pair Number 5 – 6 ꞉ | White‑Blue Strip and Blue |
| Pair Number 7 – 8 ꞉ | White‑Brown Strip and Brown |
| Mechanical & Electrical Properties | |
|---|---|
| Central Separator ꞉ | PE Cross Separator |
| Insulation ꞉ | High Density Polyethylene |
| Solid Pairs ꞉ | 4 Pairs Twisted together |
| Cable Diameter ꞉ | 5.8 ± 0.5 mm |
| Bending Radius ꞉ | 4 x OD at 20°C |
