| Order no. | Description |
|---|---|

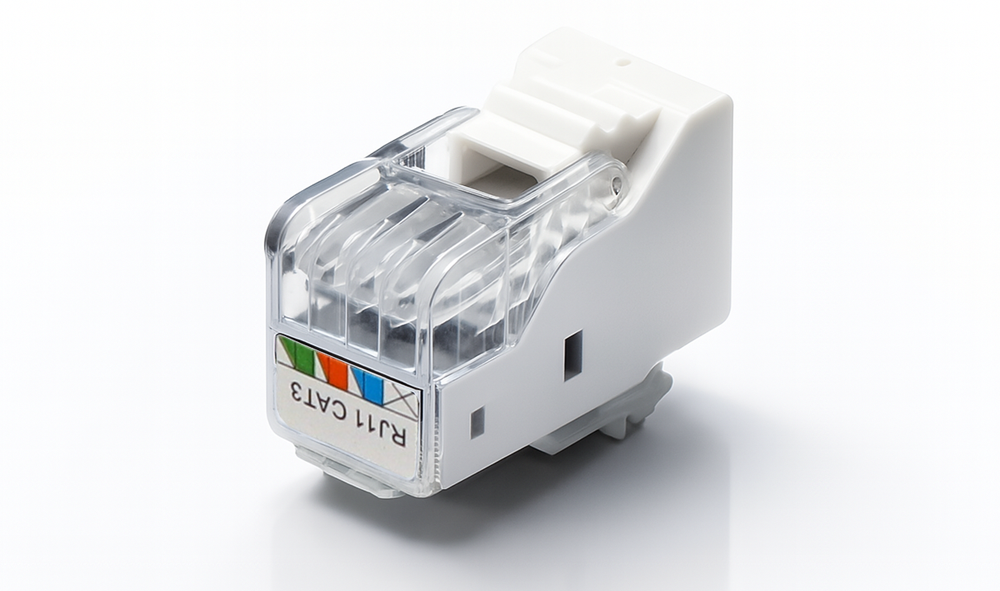

| CRBK11D3051W | Category 3 , RJ11 , Tool‑less Keystone Jack , Black color |
| CRBK11D3051B | Category 3 , RJ11 , Tool‑less Keystone Jack , white color |
| Material |
|---|
| Housing material꞉ high‑impact, flame retardancy UL94V‑1 Rated |
| Contact꞉ Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area |
| PCB material꞉ FR‑4 T=1.6mm |
| Transmission bandwidth exceed 250 MHZ |
| DescriptionsData |
|---|
| It is a jack which can be fixed onto faceplate, connection box and patch panels, in order to connection two telephone lines or Lan patch cord in telephone line systems or network systems with CAT3, CAT5E performance |
| Insulation Resistance ≥1000 M ohm |
| Contact Resistance ≤2.5 M ohm |
| Dielectric Strength DC1000V or AC700V in 1 min. No Arc & Spark‑over |
| AP type and AV type available |
| 90 degree available |
| UTP available |
| Application | |
|---|---|
| Shield material | Brass T=0.30mm nickel plating |
| Housing material | PC UL94V‑0 |
| Insert material | Flame retardancy ABS UL94V‑0 |
| PCB material | FR‑4 T=1.6mm |
| Contact material | Phosphor bronze stamp pin T=0.35mm |
| IDC contact material | Phospor broze T=0.5mm Nickel plating |
| Wire | AWG 22~26 |
| Plastic Housing | UL94‑V0 |
| IDN Life | ≥250 times |
