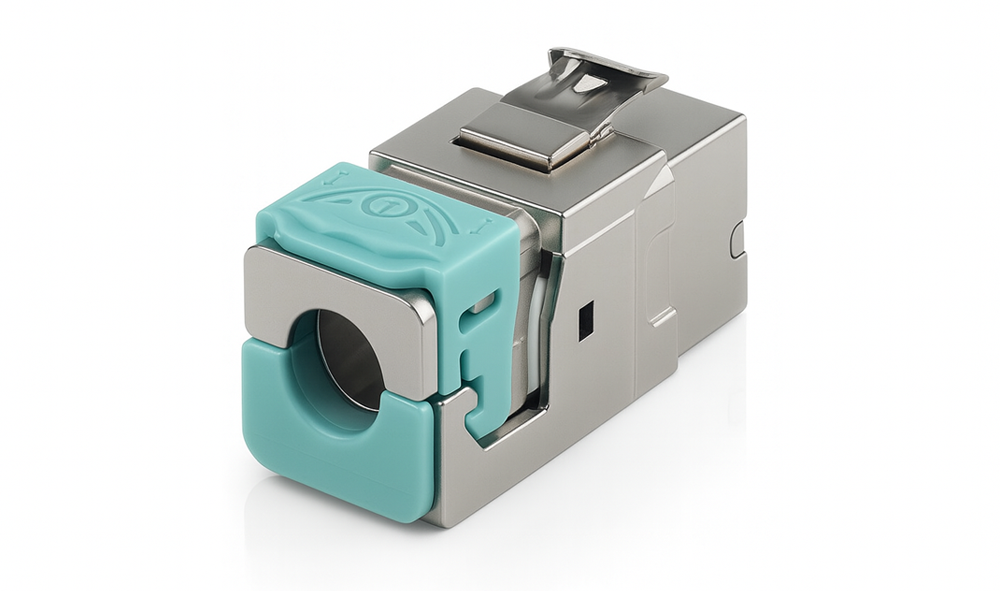

CAROBBEN Category6+/6A Full shielded 180° toolless Keystone Jack .Metal shell shielding interference. The zinc alloy shell ensures that the internal cables are not interfered by the outside world. High strength and quality materials Using phosphor bronze continuous gold-plating process, strong hardness, firm wiring, can be reused many times. Universal standard design, simple and convenient installation Support T568A/B terminal wiring sequence, terminal. compatible with 22-26AWG cable. Pass the Fluke standard test. Comply with ISO/IEC; TIA/EIA standard test, high-speed and stable data transmission. Comply with ISO/IEC; TIA/EIA standard test, high-speed and stable data transmission. Toolless Keystone installation offers numerous benefits, saving time and money by eliminating the need for specialized tools.
| Tool‑Free Service |
|---|
| Tool-free Keystone jack installation offers numerous benefits, saving time and money by eliminating the need for specialized tools. It simplifies the process, making it accessible to all, even without technical expertise. This method reduces the risk of damaging components and allows for quick, effortless connections with a snap-in design. The ease of installation boosts efficiency and productivity during network setup or modifications. Enjoy convenience, cost savings, and user-friendly experiences with CAROBBEN's tool-free Keystone jacks. |
| Application |
|---|
| The Category6+/6A channel requirements of TIA/EIA-568-B2-10 |
| The installation is very simple without the need for a punch down tool |
| Shielded die-casting keystone jack |
| 750 mating cycles with FCC compliant RJ-45 plug |
| Phosphor bronze, 50μ inch gold |
| Toolless design, requiring no impact tool |
| 100μ inch nickel plated over phosphor bronze |
| Amendment 1 to ISO/IEC 11801, 2nd Ed. |
| Electrical Data | |
|---|---|
| Insulation resistance ꞉ | 500MΩ |
| Dielectric withstanding voltage ꞉ | 1000V AC |
| DC current rating ꞉ | 1.5Amps |
| DC resistance ꞉ | 0.1Ω |
| Contact resistance ꞉ | 20mΩ |
| Operating temperature ꞉ | ‑10~60˚C |
| Operating humidity ꞉ | 10%~90%RH |
| Storage temperature ꞉ | ‑40˚C to 68˚C |
