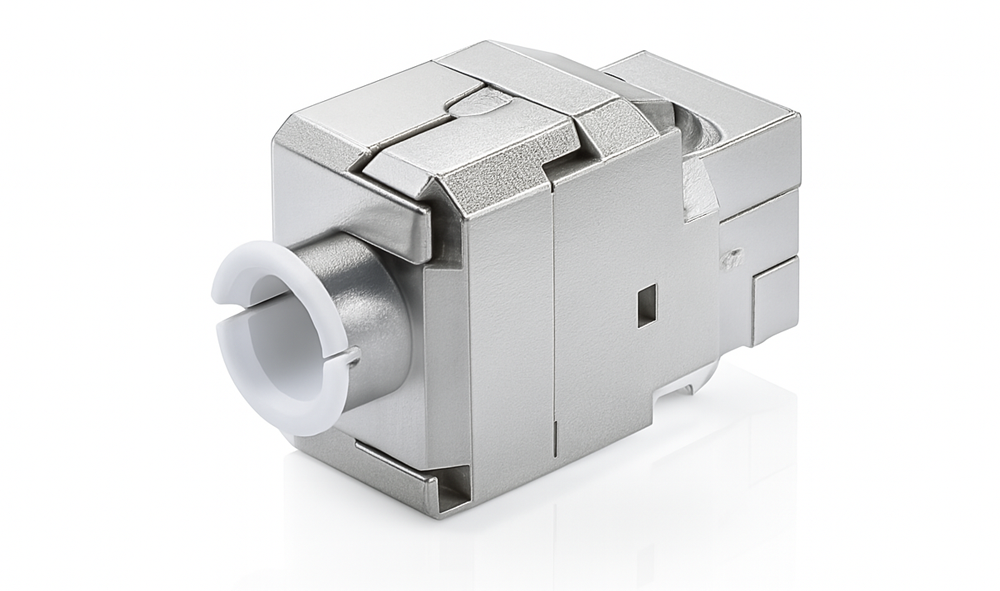

The Category6+/6A toolless screened modular keystone jack features a die-cast housing. Innovative mechanism optimizes the PSANEXT & PSAACR-F-which are the most critical criteria outlined by class EA standard. Patented PCB route & unique contact alignment provides excellent works in easing the internal magnetic coupling up to bandwidth 500MHz.
Support interoperable 10G BASE-T application, backward compatible to any Class E, Class D solution. Press-Fit tech. is applied, no solder, no BP, purely RoHS compliant. This tool-less keystone jack requires no punch down tool to install. Easy installation instructions to follow simplify your work and increase your efficiency. Toolless design does not need additional tools for termination.
| Tool-Free Service |
|---|
| Experience seamless connectivity with our tool-free network keystone, designed for quick and easy installation. Say goodbye to cumbersome tools—simply snap in and enjoy reliable performance. Perfect for both home and office setups, ensuring a secure and efficient network. Elevate your networking with our innovative, hassle-free solution. |
| Application |
|---|
| CAT6+/6A Class EA RJ45 plug to be assembled in the field |
| Easy Assembly - easily terminated in the field in 2 minute without any special tools |
| Mating durability not less than 750 cycles |
| Phosphor bronze and gold plating 50u |
| Intermediate resistance: no more than 20m ohm in normal atmosphere pressure (not including bulk resistor) |
| Easily terminated in the field in 2 minute without any special tools |
| Wire Connection: Stranded wire 24 to 22AWG |
| Electrical Data | |
|---|---|
| Insulation resistance ꞉ | 500MΩ |
| Dielectric withstanding voltage ꞉ | 1000V AC |
| DC current rating ꞉ | 1.5Amps |
| DC resistance ꞉ | 0.1Ω |
| Contact resistance ꞉ | 20mΩ |
| Operating temperature ꞉ | ‑10~60˚C |
| Operating humidity ꞉ | 10%~90%RH |
| Storage temperature ꞉ | ‑40˚C to 68˚C |
