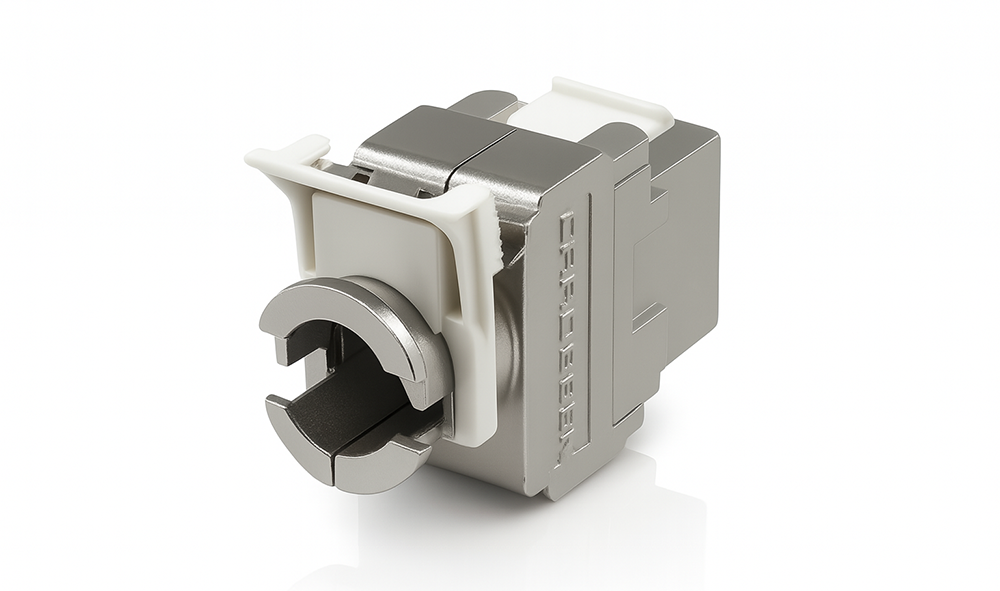

CAROBBEN Category6+/6A toolless screened modular keystone jack features a die-cast housing. Innovative mechanism optimizes the PSANEXT & PSAACR-F which are the most critical criteria outlined by class EA standard. Patented PCB route & unique contact alignment provides excellent works in easing the internal magnetic coupling up to bandwidth 500MHz. Support interoperable 10G BASE-T application, backward compatible to any Class E, Class D solution. Press-Fit tech. is applied, no solder, no BP, purely RoHS compliant. This tool-less keystone jack requires no punch down tool to install. Easy installation instructions to follow simplify your work and increase your efficiency. The socket is manufactured in a high quality zinc die cast housing.
| Tool-Free Service |
|---|
| Experience seamless connectivity with our tool-free network keystone, designed for quick and easy installation. Say goodbye to cumbersome tools—simply snap in and enjoy reliable performance. Perfect for both home and office setups, ensuring a secure and efficient network. Elevate your networking with our innovative, hassle-free solution. |
| Application |
|---|
| The Category6+/6A channel requirements of TIA/EIA-568-B2-10 |
| 750 mating cycles with FCC compliant RJ-45 plug |
| Die-Cast Housing: Zinc alloys Zamac3, effective protection from EMI and Alien crosstalk |
| Press-Fit Module, Without solder, RoHS Compliant |
| Features Tool-less design, requiring no impact tool |
| Amendment 1 to ISO/IEC 11801, 2nd Ed. |
| According UL 1863,FCC part 68, Subpart F |
| Electrical Data | |
|---|---|
| Insulation resistance ꞉ | 500MΩ |
| Dielectric withstanding voltage ꞉ | 1000V AC |
| DC current rating ꞉ | 1.5Amps |
| DC resistance ꞉ | 0.1Ω |
| Contact resistance ꞉ | 20mΩ |
| Operating temperature ꞉ | ‑10~60˚C |
| Operating humidity ꞉ | 10%~90%RH |
| Storage temperature ꞉ | ‑40˚C to 68˚C |
