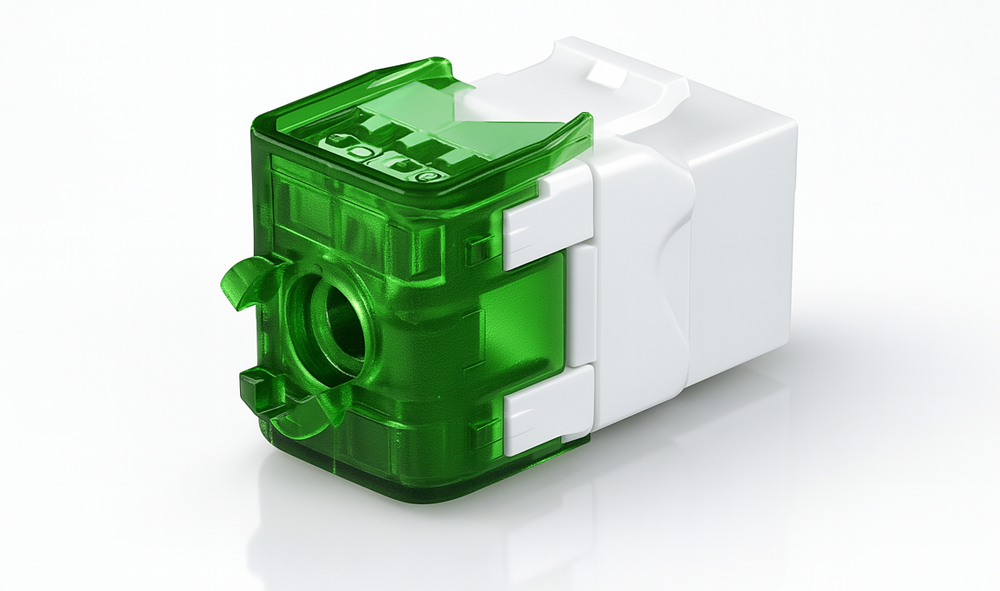

CAROBBEN Category6+/6A unshielded tool free RJ-45 keystone jacks exceed the transmission line performance requirements of IEC and TIA for CLASS-EA Category6+/6A systems. Their compact design has been engineered to optimize density in high performance applications such as Data Centers.Each Category6+/6A unshielded RJ-45 keystone jacks comply with IEC 60603-7-41 (Unshielded) and support all applications designed for CLASS-EA networks, as defined within ISO/IEC 11801 and 1000BASE-T (Gigabit Ethernet). The low profile design allows this jack to fit in the CAROBBEN 24 Port Patch Panel resulting in a maximum port density of 48 per 1U. Fits all keystone style face plates and floor boxes.
| Material |
|---|
| Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating |
| IDC Conductor : 0.5mm Phosphor Bronze, Tin-plating |
| Jack Contact Life : Min. 750 Insertions |
| Termination : 180° Termination |
| Electrical Data | |
|---|---|
| Insulation Resistance: | 500 MΩ |
| Rating: | 1.5 Amps |
| DC Resistance: | 0.1 Ω |
| Contact Resistance: | 20 MΩ |
| Voltage rating: | 60V |
| Application |
|---|
| Easy and fast tool free termination |
| Patented PCB circuit forms a mutually corresponding capacitive for cross talk cancellation. |
| Suitable for modular screened patch panel installation |
| Easy to wire and toolless installation |
| Support application with PoE, IEEE 802.3bt PoE++ Type 4 |
| Support Class EA Category6+/6A standards networks |
| Universal color-coding according to T568A and T568B |
