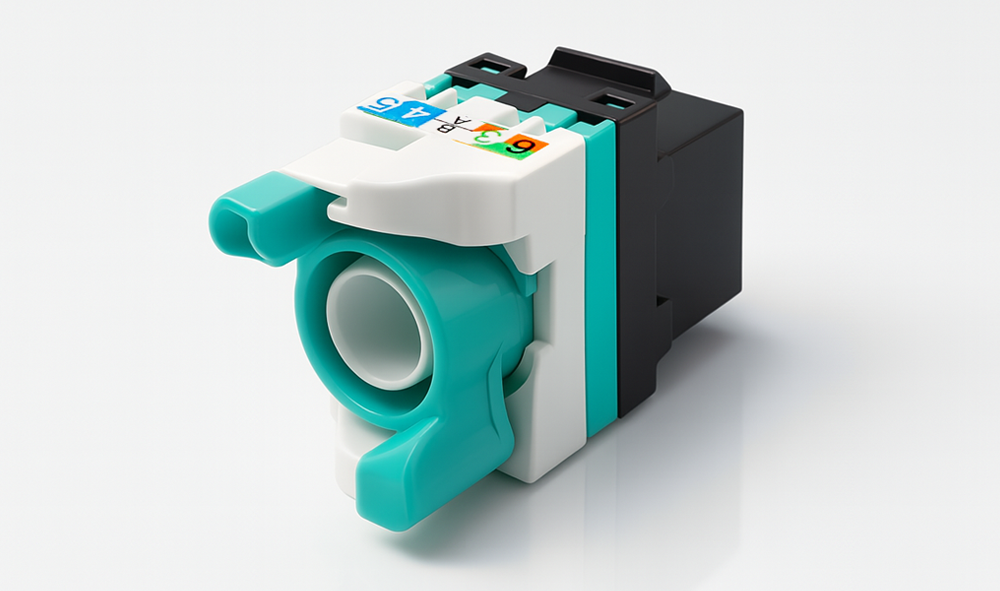

CAROBBEN Category 6+/6A unshielded jacks are designed and manufactured to meet and exceed the current and future requirements for high bandwidth and forms an essential element of the structured cabling system. The keystone jacks are highly reliable and offers optimal network performance. The jack forms part of the faceplate as well as part of the modular patch-panel. Clear wire retaining caps are supplied which provide additional cable strain relief. The keystone jacks are color-coded for both 568A and 568B standards. The Tool-less connectivity, suitable for RJ45 plugs; integrated protection against damage of contacts by means of automatic defined release of connection.
| Material |
|---|
| Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating |
| IDC Conductor : 0.5mm Phosphor Bronze, Tin-plating |
| Jack Contact Life : Min. 750 Insertions |
| Termination : 180° Termination |
| Electrical Data | |
|---|---|
| Insulation Resistance: | 500 MΩ |
| Rating: | 1.5 Amps |
| DC Resistance: | 0.1 Ω |
| Contact Resistance: | 20 MΩ |
| Voltage rating: | 60V |
| Application |
|---|
| Easy and fast tool free termination |
| Patented PCB circuit forms a mutually corresponding capacitive for cross talk cancellation. |
| Suitable for modular screened patch panel installation |
| Easy to wire and toolless installation |
| Support application with PoE, IEEE 802.3bt PoE++ Type 4 |
| Support Class EA Category6+/6A standards networks |
| Universal color-coding according to T568A and T568B |
