CAROBBEN, a proud member of Ben Group, stands at the forefront of the networking accessories industry with a rich legacy spanning 16 years. Originating in Torino, Italy, we have dynamically expanded our global presence with cutting-edge manufacturing facilities strategically positioned in Taiwan, China, and Turkey.

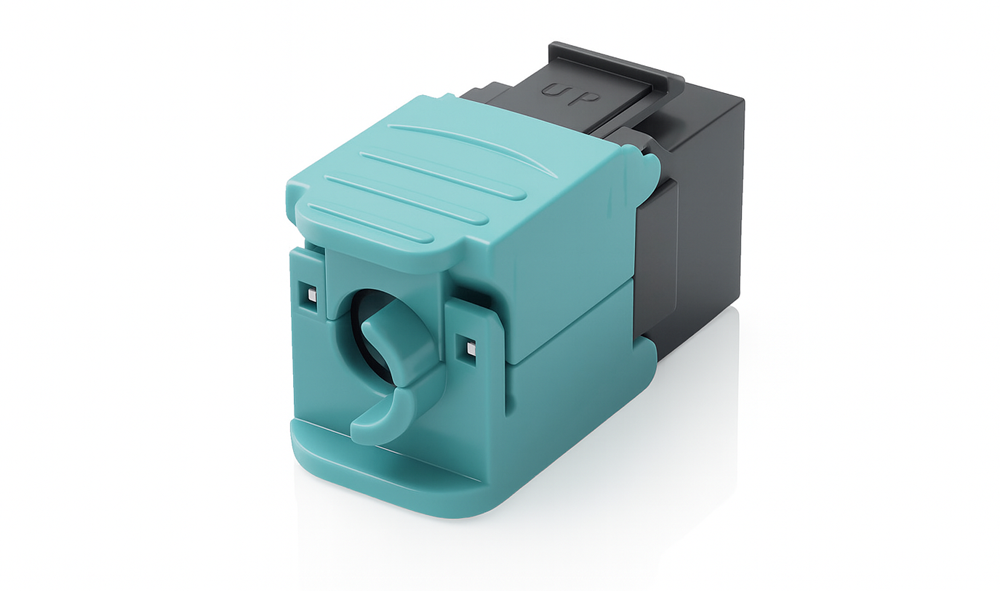

CAROBBEN Cat6A unshielded keystone jacks are built with German-engineered PCB for superior signal quality and durability. Fully compliant with IEC 60603-7-41 and ISO/IEC 11801 , they support 10GBASE-T and deliver excellent Fluke test results.
The compact, tool-free design allows up to 48 ports per 1U using CAROBBEN patch panels, making them ideal for high-density environments like data centers. Compatible with all keystone-style faceplates and floor boxes.
Key Benefits:
– German PCB technology
– High-performance 10G support
– Excellent Fluke test results
– Compact & tool-free
– Universal keystone compatibility
| Material |
|---|
| Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating |
| IDC Conductor : 0.5mm Phosphor Bronze, Tin-plating |
| Jack Contact Life : Min. 750 Insertions |
| Termination : 180° Termination |
| Electrical Data | |
|---|---|
| Insulation Resistance: | 500 MΩ |
| Rating: | 1.5 Amps |
| DC Resistance: | 0.1 Ω |
| Contact Resistance: | 20 MΩ |
| Voltage rating: | 60V |
| Application |
|---|
| Easy and fast tool free termination |
| Patented PCB circuit forms a mutually corresponding capacitive for cross talk cancellation. |
| Suitable for modular screened patch panel installation |
| Easy to wire and toolless installation |
| Support application with PoE, IEEE 802.3bt PoE++ Type 4 |
| Support Class EA Category6+/6A standards networks |
| Universal color-coding according to T568A and T568B |
