| Order no. | Description |
|---|---|
| CRBP6U2445B | 24 Port , Cat6+ UTP Patch Panel, 45° Series , With Cable Support bar , Dual type IDC , Black color |
| CRBP6U2445W | 24 Port , Cat6+ UTP Patch Panel, 45° Series , With Cable Support bar , Dual type IDC , White color |

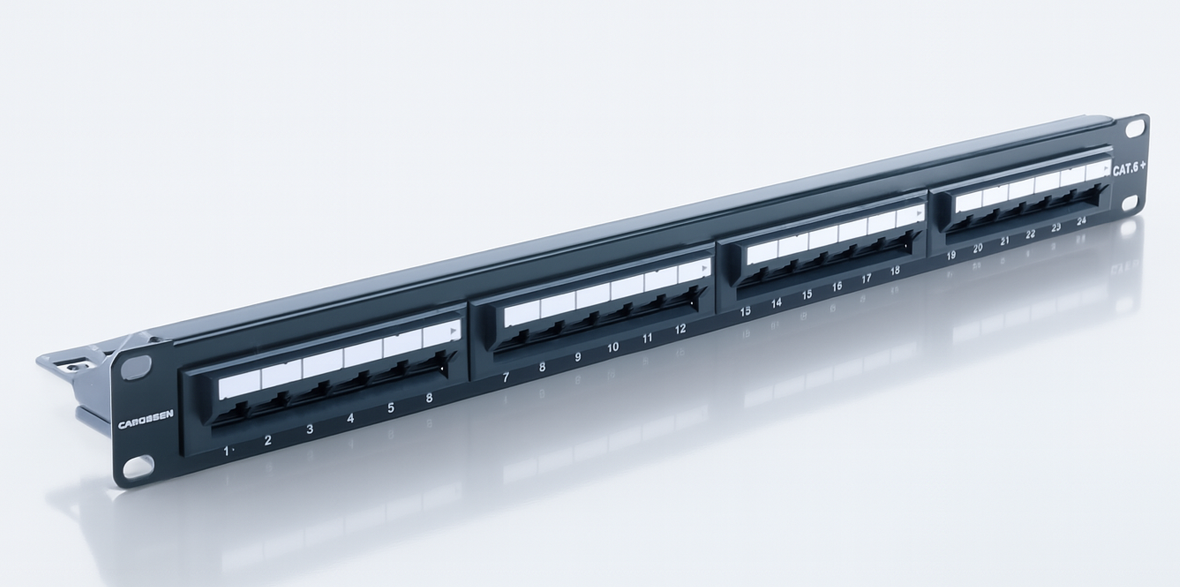

CAROBBEN Category 6+ Unshielded 24 Port Patch Panel comply with ANSI/TIA‑568.2‑D, ISO/IEC 11801‑1 and EN 50173‑1 Class E specifications. The complete module complies with EU ROHS directive. The construction is in standard 1U 19” size, suits for all 19” rack installation. The main metal frame is made of SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22‑26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product is available in 24 port (1U). Modular port at a 45° angle to facilitate in cable flow and provides more cabling room, especially for deeper equipment. With the smaller depth in equipment, it is impossible to interim the recommended bending radius of cables.
| Application |
|---|
| The Category 6+ channel requirements of TIA/EIA‑568‑B2‑10 |
| 750 mating cycles with FCC compliant RJ‑45 plug |
| IDC termination using 110 or KRONE tool |
| Press‑Fit Module, Without solder, RoHS Compliant |
| 45 Degrees for easy design |
| Amendment 1 to ISO/IEC 11801, 2nd Ed |
| According UL 1863,FCC part 68, Subpart F |
| Storage temperature ꞉‑40˚C‑68˚C |
| Operating humidity ꞉ 10%~90%RH |
| Black or White Color |
