Order no.

CRBPL817C6ASS

Description

Category 6A Modular STP Plug Rj45 , With Unbreakable handle & 50µ Gold in plats , 3 Prongs

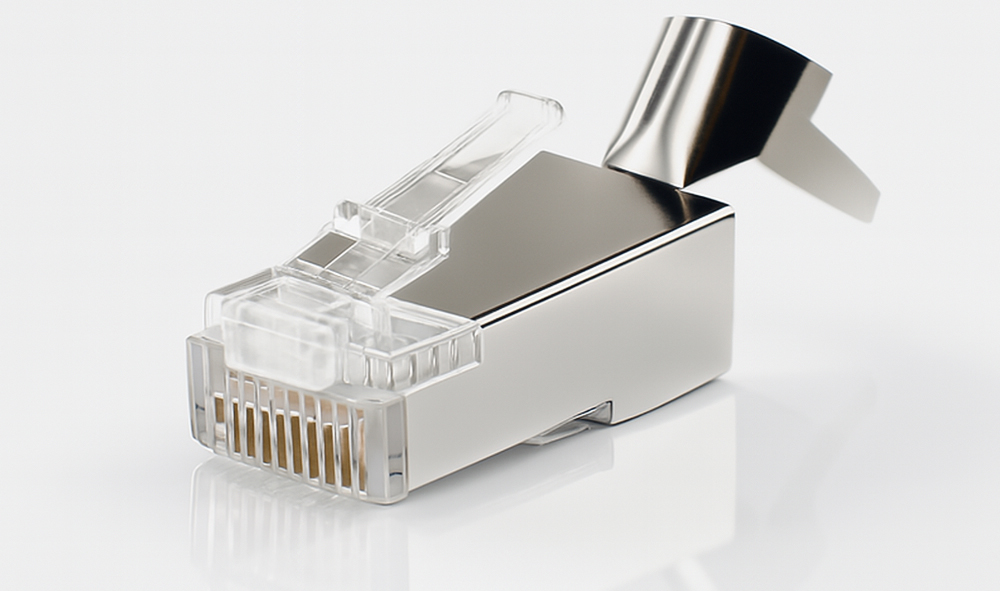

Category 6A Standard RJ45 Shielded Modular Plug

CAROBBEN Shielded RJ45 Modular Plugs make quality termination easyand fast with CAT6+, CAT6A, and CAT7 solid and stranded roundwire cables. The modular plugs accept 23 to 26 AWG shielded or unshielded cable. The insulated conductor outside diameter need to be less than or equal to 1.3 mm. Plug Housing is made of flame retardant PC material, with the copper casing under plated with gold which assure that each crimping without fail. The load bar is best for installation with conductors. The tail clamp protected support barrel evenly crimped and firm around the cable. High-performance shielded housing and the thick gold-plated three-prongs gold-plated contacts ensure fast data transfer speed, reduce pair to pair alien crosstalk, and greatly improve noise immunity at all frequencies.

Application
Interface ꞉ RJ45
Size 7.96 x 22.5 x 11.62 mm
Product ꞉ Cat6A FTP Shielded 8P8C 3 Prong Rj45 Connector
Chip contacts gold‑plated , Chip surface nickel
Application ꞉ Single strand core Ф1.0mm
Faster transmission
Anti‑oxidation , anti‑corrosion and more durable
Enhanced conduction performance
Material
Chip material for the pure copper
Color ꞉ Nature
Material ꞉ PC + Pure Copper
Pin Material ꞉ Pure Copper
Packing ꞉ Blister Box / 100 Pcs
Temperature Range ꞉ ~40°C~+70°C
Plating ꞉ Fu ‑ 50u
Standard ꞉ IEC standard
Technology
Type STP modular connector for data RJ45 8P/8C Cat.6, Cat.6A and Cat.7
Using a three‑pronged chip, the contact is stable and continuous
The cable can be fixed at the rear to make the cable more secure and not loose
Made of environmentally friendly PC material, corrosion resistant, tough, and long service life
